Domestic animals’ identification using PCR-RFLP analysis of cytochrome b gene

Murad Ali Rahat1, Muhammad Haris1, Zaib Ullah2, Saba Gul Ayaz2, Mian Nouman2, Akhtar Rasool2, Muhammad Israr2*

Adv. life sci., vol. 7, no. 3, pp. 113-116, May 2020
*- Corresponding Author: Muhammad Israr (Email: israr@uswat.edu.pk)
Authors' Affiliations

 1. Department of Genetics, Hazara University, Mansehra – Pakistan
2. Centre for Animal Sciences and Fisheries, University of Swat – Pakistan
 [Date Received: 11/06/2019; Date Revised: 14/02/2020; Date Published Online: 25/05/2020]

Abstractaa download_button
Introduction
Methods
Results
Discussion
References

Abstract

Background: Species identification is an important process to identify the origin of meat, adulteration and for  cooked and processed meat. The present study was conducted to identify cattle (Bos taurus) and buffalo (Bubalus bubalis) by using mitochondrial cytochrome-b (Cyt-b) gene. Size of the gene is 1140 bp, but we amplified 359 bp that is cleaved by specific restriction endonucleases. The aim of this study was species identification through Cyt-b gene by using PCR-RFLP analysis.

Methods: For this study, 55 blood samples were collected from different species of domestic animals. The DNA was extracted from the whole blood through blood extraction kit. The DNA of these samples were amplified through PCR using universal Cyt-b primers. The amplified product was treated with restriction enzymes Alu I. The resultant fragments were viewed on 3.0 % agarose gel.

Results: Cyt-b gene was amplified of all included animals. Different bands were observed as compared with 50 bp DNA ladder. Animals were identified on the base RFLP mediated by Alu1 restriction enzyme.

Conclusion: We identified domestic animals on the basis of Mitochondrial Cyt-b gene by the process of PCR-RFLP. To identify specific animals through RFLP, a larger sample size and confirmation by gene sequence analysis may be helpful.

Keywords: Domestic Animal Identification; Cytochrome b gene; AluI restriction enzyme; PCR-RFLP Analysis

Introduction6th button-01

Meat and meat product is considered an important source of food throughout the world. Adulteration of the meat is very serious issue to be considered for consumers [1,2]. There is also fear of disease spreading and risk to public health. Animal species identification is useful in solving criminal problems, kinship cases, maternity and paternity testing, lineage, wildlife trafficking, illegal trade, inbreeding counting, speciation, and for protection of various animal lives [3,4]. Currently for meat testing different techniques are used in which the most common is PCR-RFLP. In forensic field PCR–RFLP is very important technique and commonly used analysis for genetic identification of various species [5,6]. Most of the species identification is done through mitochondrial genes as compared to nuclear genes based on sequences diversity because mitochondrial genome having less chance of mutation as compare to nuclear genome [7]. There are more than one mitochondrial genes used for different species identification like 16S and 12S rRNA but the most common is cytochrome-b (Cyt-b) gene which has been in use for the last 2 decades for the animals identification to differentiate among nearly related taxa [8-10]. Cyt-b gene length is 1140 bp; it has different stable and proper sequences which are used for the suggestion of various universal primers, and also variable sequences which are useful for identification of animals. But usually the whole gene is not amplified because it is time consuming and difficult process, we amplify short fragment of the gene like 402 bp or 359 bp in some cases which is cleaved by specific restriction endonucleases like Alu I [11,12]. Cyt-b gene shows high polymorphisms which play a key role in species identification. Species identification studies based on Cyt-b have ranged from both short (400bp) to long (900bp) PCR-RFLP, DNA sequencing, and variable size-species specific multiplex PCR [4-6,9,10]. The aim of the study was the identification of domestic animals’ species through Cyt-b by using PCR-RFLP.

Methods6th button-01

Sample collection

Total of 55 blood samples were collected from different areas of the District Swat including 3 blood samples from each species of broiler chicken, cat, donkey, goat, horse, sheep, rabbit; 2 from turkey; 4 from dogs; 9 from buffalos and 19 from cattle. The blood samples from domestic organisms were collected in EDTA tubes using 3cc or 5cc syringes by the permission of the owner of domestic animals. The blood samples were stored in the refrigerator in Forensic Research Laboratory at University of Swat before further processing.

DNA extraction

Whole DNA contains nuclear and mitochondrial DNA which was extracted from whole blood 55 samples by using Wiz prep genomic DNA mini kit (WIZBIO Solutions, South Korea). Concentration and integrity of the extracted DNA was checked using 0.8% agarose gel.

PCR amplification

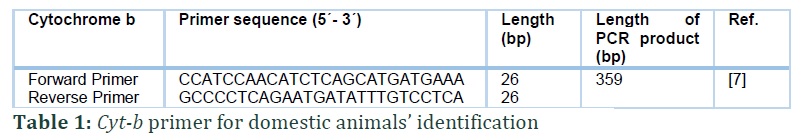

To make the concentration of DNA uniform, 150µl 1X TE buffer to the 12 samples (Bright) and added 50 µl to 4 samples and stored at room temperature. The following primers (table 1) were used to amplify a 359 bp fragment of the Cyt-b gene.

The amplification reaction was carried out in by PCR Machine (PERKIN ELMER GeneAmp PCR system 2400, USA). Total of 25uL Reaction mix was prepared using 5µL of template DNA, 2µl forward and reverse primer each, 15 µl Green Master mix and 6µl deionized water. PCR program was set for DNA samples as: Initial denaturation at 94ºC for 5 min, followed by 33 cycles of denaturation at 94ºC for 40 Sec, annealing at 56ºC for 40 sec and extension at 72ºC for 40 sec and subsequent final extension at 72ºC for 5 min.

RFLP analysis

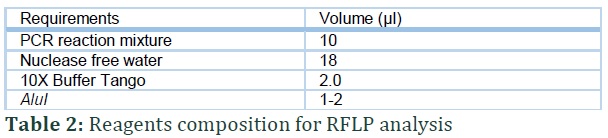

RFLP analysis was carried out by adding specific restriction endonucleases (AluI) to PCR products which resulted different bands for each individual on 3.0% agarose gel. The ingredients were mixed gently and spun down for a few seconds then incubated at 37°C for 1-16 hours. The RFLP samples were electrophoresed using 3% agarose gel. Fifteen microliters of each sample were loaded in the gel and run for 90 minutes at 100V.

Results6th button-01

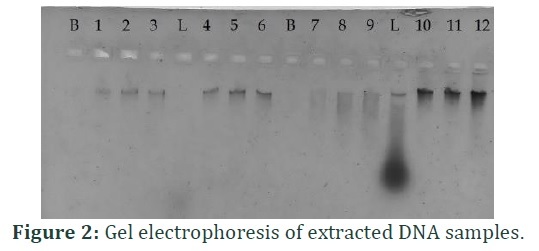

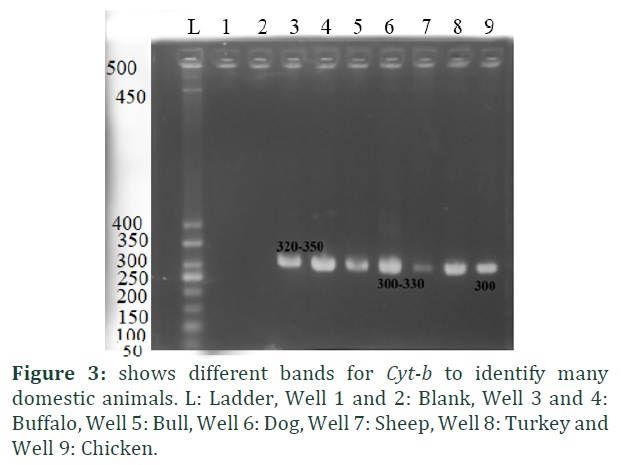

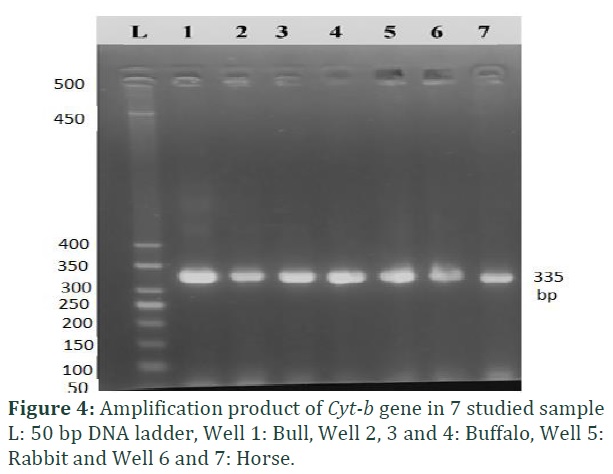

The extracted DNA samples were run on 0.8% agarose gel that confirmed DNA bands (figure 2). PCR amplicons were run on gel that showed different bands when visualized using gel documentation system.

Figures & Tables





















Discussion6th button-01

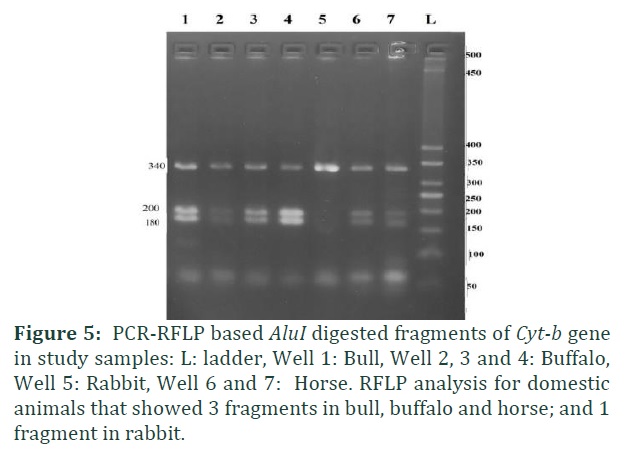

In the present study we used Cyt-b gene cleaved by a single restriction endonuclease AluI, which generate different fragments for each individual like 340, 200, and 180 bp in bull and buffalo; 340 bp in rabbit; and 340, 200, 180 bp in horse. Species identification is carried out by using Cyt-b gene through PCR-RFLP. Different enzymes have been reported in the literature like BstUI, TaqI, RsaI, BsaJI, AluI, NsiI, and BstNI and  HinfI [13]. Using PCR-RFLP technique, variation in Cyt-b fragments have been identified in different species such as buffalo, cattle, rabbit and horse. Previously a study was aimed to develop a simple method for identification of various species through specific primers for amplification of Cyt-b gene in mitochondrial DNA. Another study was conducted where DNA from blood sample was amplified through Cyt-b gene primers followed by the process of RFLP which showed two fragments in buffalo (290 and 68 bp) and two in sheep (312 and 46 bp) for Alu I restriction enzymes. For the amplification of Cyt-b gene universal primers are used (H15173 and of L14816) to identify sheep buffalo and camels [14]. A single fragment with a size of 359 bp resulted from PCR amplification of the Cyt-b gene in cattle and buffalo. Our indings are in sync with this study because the volume of PCR is almost similar to each other. Fragments number and size difference is because of differences in the primers used.

Elsewhere in the literature, RFLP analysis of the Cyt-b gene fragment for three different animal species revealed high specificity and discrimination, with no common fragment shared among the studied species. Moreover the resulting fragments were the same for each species in all samples regardless the age (newborn, young and adult) [14]. 359 bp long fragment was digested by restriction enzyme AluI to specie specific patterns. Results of digestion were visualized after electrophoresis on 3% agarose gel. PCR product of rabbit (Oryctolagus cuninculus) did not have restriction place for AluI, so the whole 359 bp long fragment is visible on agarose gel. Main focus of our research was to identify domestic animals through AluI restriction enzyme which showed bands differentiation in animals. We compared different research with our work that shows similarities because we used same gene for identification purposes. All these results in the literature as well as our study shows that multiple genes and different primers are used for species identification but most accurate results are shown Cyt-b gene using universal primers. Species identification through Cyt-b gene for cattle mostly shows 3 fragments and rabbit shows usually single fragment for identification if treated with AluI enzyme.

We identified domestic animals on the basis of Mitochondrial Cyt-b gene by the process of PCR-RFLP. To identifiy specific animals through RFLP this samples size is less. In future, a larger sample size with more enzymes is needed to predict accurate identification of animals followed by gene sequence analysis.

Authors' Contribution







ZU, SGA and MN carried out field and bench work. MAR and MH helped in analysis of data and writing of manuscript. MI and AR coneived the study, carried analysis and helped in write up.

Conflict of interest

The authors declare that there is no conflict of interest regarding the publication of this paper.

References6th button-01

6th button-01

  1. Fujimura T, Matsumoto T, Tanabe S, Morimatsu F. Specific discrimination of chicken DNA from other poultry DNA in processed foods using the polymerase chain reaction. Bioscience, biotechnology, and biochemistry, (2008); 0802200788-0802200788.
  2. Wells GA, Scott A, Johnson C, Gunning R, Hancock R, et al. A novel progressive spongiform encephalopathy in cattle. Veterinary Record, (1987); 121(18): 419-420.
  3. Bartlett SE, Davidson WS. Fins (Forensically Informative Nucleotide Sequencing) – a Procedure for Identifying the Animal Origin of Biological Specimens. Biotechniques, (1992); 12(3): 408-411.
  4. Wetton JH, Higgs JE, Spriggs AC, Roney CA, Tsang CSF, et al. Mitochondrial profiling of dog hairs. Forensic Science International, (2003); 133(3): 235-241.
  5. Bellagamba F, Moretti VM, Comincini S, Valfre F. Identification of species in animal feedstuffs by polymerase chain reaction–restriction fragment length polymorphism analysis of mitochondrial DNA. Journal of Agricultural and Food Chemistry, (2001); 49(8): 3775-3781.
  6. Pfeiffer I, Burger J, Brenig B. Diagnostic polymorphisms in the mitochondrial cytochrome b gene allow discrimination between cattle, sheep, goat, roe buck and deer by PCR-RFLP. BMC Genetics, (2004); 530.
  7. Kocher TD, Thomas WK, Meyer A, Edwards SV, Paabo S, et al. Dynamics of mitochondrial DNA evolution in animals: amplification and sequencing with conserved primers. Proceedings of the National Academy of Sciences of the United States of America, (1989); 86(16): 6196-6200.
  8. Ashwani K, Singh Y, Prasad G. Cytochrome-b gene based PCR for identification and differentiation of cooked meat of sheep, goat, cattle, pig and poultry. Haryana Veterinarian, (2009); 4853-57.
  9. Fajardo V, Gonzalez I, Lopez-Calleja I, Martin I, Hernandez PE, et al. PCR-RFLP authentication of meats from red deer (Cervus elaphus), fallow deer (Dama dama), roe deer (Capreolus capreolus), cattle (Bos taurus), sheep (Ovis aries), and goat (Capra hircus). Journal of Agricultural and Food Chemistry, (2006); 54(4): 1144-1150.
  10. Zarringhabaie GE, Pirany N, Javanmard A. Molecular traceability of the species origin of meats using multiplex PCR. African Journal of Biotechnology, (2011); 10(73): 16461-16465.
  11. Hsieh HM, Chiang HL, Tsai LC, Lai SY, Huang NE, et al. Cytochrome b gene for species identification of the conservation animals. Forensic Science International, (2001); 122(1): 7-18.
  12. Lenstra JA, Buntjer JB, Janssen FW. On the origin of meat-DNA techniques for species identification in meat products. Veterinary Sciences Tomorrow, (2001).
  13. Wong C, Lim A, Chua H. Detection of meat contaminants in processed meats using polymerase chain reaction-restriction fragment length polymorphismanalysis. Borneo Science, (2010); 215-18.
  14. Farag M, Imam T, Dhama K. Identification of some domestic animal species (camel, buffalo and sheep) by PCR-RFLP analysis of the mitochondrial cytochrome b gene. Advances in Animal and Veterinary Sciences, (2015); 3(2): 136-142.
