Collection of soil samples and isolation of bacteria that degrade hydrocarbons

The study area, known as the Wasit oil depot, is situated in the southeast of Wasit province, Iraq, next to the Tigris River, encircled by agricultural areas, and is where the oil-contaminated soil samples were taken in March 2021. Fifty ml of Bushnell-Hass medium broth. The medium containing KH₂PO₄ (1g/L), K₂HPO4 (1g/L), CaCl₂ (0.02g/L), (NH₄)₂SO₄ (1g/L), MgSO₄ (0.2g/L) and FeCl₃ (0.05g/L) were put in Erlenmeyer flasks (250 ml) and enhanced with 1% crude oil, which was autoclaved at 121 ºC for 15 minutes to serve as a hydrocarbon source. Each Erlenmeyer flask contained 1 g of the initial soil sample after sterilization. Every Erlenmeyer flask was incubated for 14 days at 150 revolutions per minute at 30 ˚C in a shaker incubator [7]. Following the incubation period, each flask's optical density was measured using a spectrophotometer set to 600 nm. Samples and controls were cultured on BHM agar plates, and each flask had three duplicate plates made for it. The plates were then all incubated for 48 hours at 30 ˚C to isolate the most effective bacteria in the decomposition of hydrocarbon pollutants.

For the production of pure cultures of bacteria, a single colony of different isolates was selected, transferred many times from mixed culture plates onto Luria agar plates using the technique of streaking, then cultured for 24 hours at 30°C. [7]. Pure isolates were kept on Luria agar and nutrient slant was used for isolation and maintenance of pure strains.

Screening of bacterial isolates that degrade crude oil

After reactivating pure bacterial isolates on nutritional agar and incubating for 24 hours at 30˚C, each isolate's bacterial inoculum was prepared using Luria-Bertani broth and incubated for 18 hours at 30˚C. The reactivated bacterial isolates were used to inoculate 50 ml of liquid BHM at pH 7 and 5 milliliters of 1% crude oil were added as a substrate. The Erlenmeyer flasks were then incubated in a shaker incubator for 7 days at 30˚C (150 rpm). The most effective bacterial isolates in decomposition were identified by measuring the following parameters after the incubation period: biomass, optical density, the emulsification index and the percentage of hydrocarbon decomposition using a gravimetric method [8].

Measurement of bacterial growth

Using a UV-VIS spectrophotometer, the bacterial suspension's optical density was determined at 600 nm [9].

Biomass Estimation

The dry weight method was used to estimate biomass. Following the incubation time, a 20 ml of culture broth was centrifuged for 20 minutes at 4000 rpm. After being resuspended in deionized water, the pellets were centrifuged once more. Pellets were washed out of the tube into pre-weighed filter paper after the supernatant was drained. After drying for 24 hours at 105 degrees Celsius, the filter paper was weighed again until a consistent dry weight was achieved [10].

The emulsification index (E-24)

The emulsifying capacity of culture supernatant assessed according to [11]. 5 ml of culture supernatant and 1 ml of crude oil were combined in tube of test, vortexed violently for 2 minutes, and then allowed to stand for 24 hours in order to measure (E-24). The emulsification index percent was determined using this formula.

Measurement of crude oil remediation by gravimetric method

It was measured depending on the method of [12].

Identification of the bacterial isolates

A phenotypic identification of the bacterial isolates with bioremediation capabilities was determined by gram staining, colony size, shape, and texture. Biochemical features include urease test, indole test, test of catalase, methyl red test, starch hydrolysis, Voges Proskauer test, gelatin consumption test, motility test, Simmons citrate test and oxidase test.

Optimal condition for bioremediation of hydrocarbon pollutants by Pseudomonas putida

a-Effect of incubation periods

Fifty ml of Bushnell-Hass medium broth was put in Erlenmeyer flasks and 1% crude oil was added as a hydrocarbon source. These flasks were  inoculated with  5 ml of bacterial inoculum of P. putida   (three replicates were made). Every flask was incubated in a shaker incubator at 30 ˚C, 150 rpm/min with different periods of incubation (3,6,9,12) days. After the end of each time period bacterial growth (O.D at 600nm) and the percentage of hydrocarbon degradation were measured for bacterial isolate P. putida  and control [13].

b-Effect of temperatures

Fifty ml of liquid BHM was dispensed in 250ml Erlenmeyer flasks, pH adjusted at 7.0 and supplemented with 1% crude oil as a substrate, the media were inoculated with 5ml of bacterial inoculum of P. putida  and then the flasks were incubated in varied temperatures 25, 30, 35, and 40˚C at 150 rpm for seven days. Following the incubation process, bacterial growth (O.D at 600nm) and the percentage of hydrocarbon degradation were measured for bacterial isolate P. putida  and control [14].

c- The impact of varying pH values

The pH effect on bacterial decomposition of hydrocarbon compounds was determined by using a liquid BHM. The BH medium was distributed in the amount of 50 ml, After adjustments, the pH values of this medium became 6, 7, 8, and 9 using solutions of HCl (0.1N) and NaOH (0.1N) and the medium inoculated with 5 ml of bacterial inoculum P. putida  and then incubation was done in shaker incubator at 150 rpm (30 ˚C for 7 days). Following the incubation process, bacterial growth (O.D at 600nm) and the percentage of hydrocarbon degradation were measured for bacterial culture P. putida  and control [14].

d-Effect of different carbon sources

The liquid BH medium (50 ml) with its pH adjusted at 7.0 and supplemented with 1% crude oil as a substrate, the medium components were modified by adding (2%) from different carbon sources (sucrose, fructose, glucose and maltose) and by using separate flasks for each carbon source, five milliliters of P. putida bacterial inoculum were added to each flask, and it was subsequently incubated for seven days at 30˚C at 150 rpm. Following the interval of incubation bacterial growth (600nm) and the percentages of hydrocarbon degradation were measured for bacterial culture P. putida  and control [9].

Results

Identification of bacterial isolates

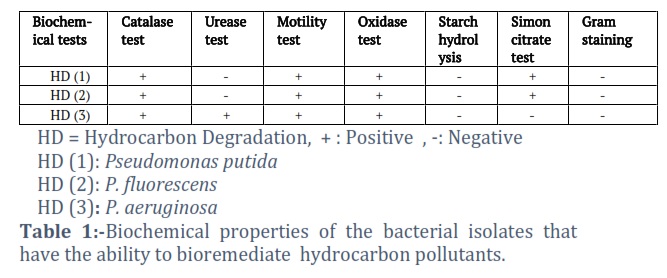

Pseudomonas putida , P. fluorescences and  P. aeruginosa and other bacterial species were identified according to morphological characteristics and the biochemical tests as shown in Table (1). These bacterial species have the ability to degrade heavy oil through using BHM media supplemented with crude oil as the sole energy and carbon source.

Screening of bacterial isolates that degrade hydrocarbons

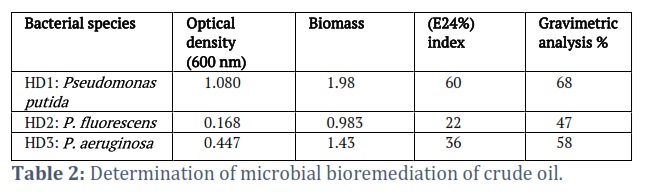

Four methods such as biomass, measurement of bacterial growth (optical density) emulsification index (E24%) and measurement of crude oil remediation by gravimetric method were used to assess bacterial isolates' capacity to break down heavy crude oil by using BHM media. Table (2) showed that Pseudomonas putida was the most effective bacterial isolate to remediate petroleum hydrocarbons compared with other species.

Optimal condition for bioremediation of hydrocarbon pollutants by Pseudomonas putida

a-Incubation period and temperature

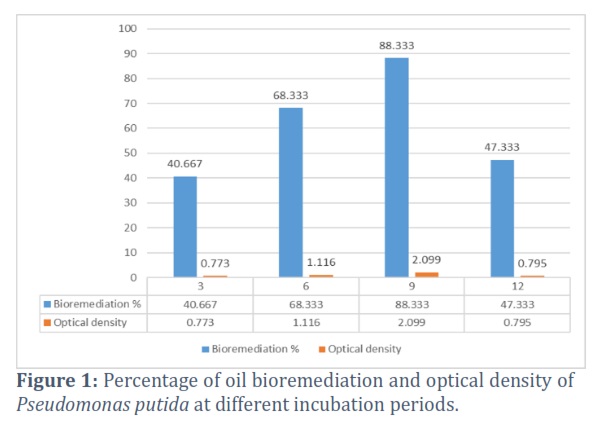

Different time periods (3,6,9,12) days were tested to determine optimal incubation time for bioremediation of hydrocarbon pollutants by P. putida , using BHM medium supplemented by 1% oil as the sole source of energy and carbon. The result of this study showed that nine days was the optimal incubation period for hydrocarbon degradation. The percentage of hydrocarbon degradation of P. putida in 9 days of incubation was (88.33 %), while it was 40.66 %, 68.33 %, and 47.33 % for incubation period of 3, 6, and 12 days, respectively (Figure 1). Figure (1) showed that P. putida  appeared  highest optical density in (9 days) was (2.099) and the lower optical density appeared in (3 days) was (0.773).

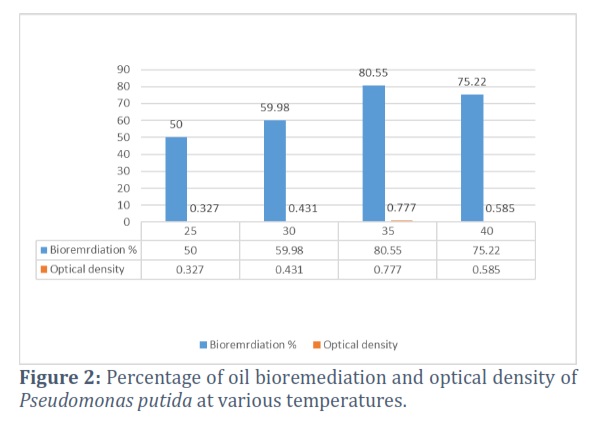

By using BHM medium supplemented by 1% curd oil and inoculated with bacterial suspension P. putida  in various temperatures (25°C, 30°C, 35°C, 40°C) to determine optimal temperature for bioremediation process. The result of this study showed that the highest value of hydrocarbon degradation of P. putida  was (80.55 %) at 35 C while the lowest value was (50 %) at 25 C (Figure 2). P. putida  appeared the highest optical density at temperature 35 ºC and the lower optical density was observed at 25 ºC. The optical density at 35 ºC was 0.777 and 0.327 at 25 °C respectively, compared to other temperatures (Fig 2).

b- pH and carbon sources

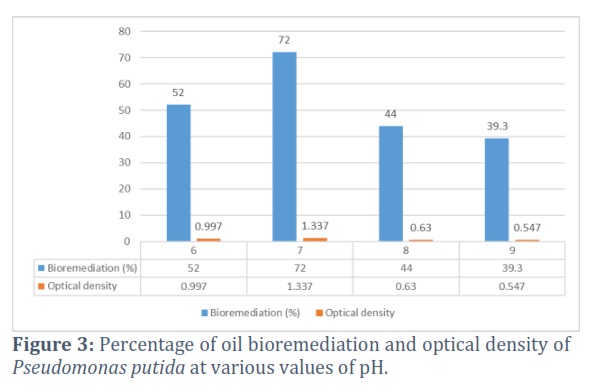

This study showed that the optimal pH was 7 whereas, the percentage of hydrocarbon degradation for P. putida  was 72% at pH 7  while it was 52 % , 44%, 39.3% at pH 6,8 and 9, respectively (Figure 3).The result of this study showed that the highest value of optical density (OD 600) for P. putida  was 1.337 at pH 7, while the lowest value was 0.547 at pH 9 (Figure 3).

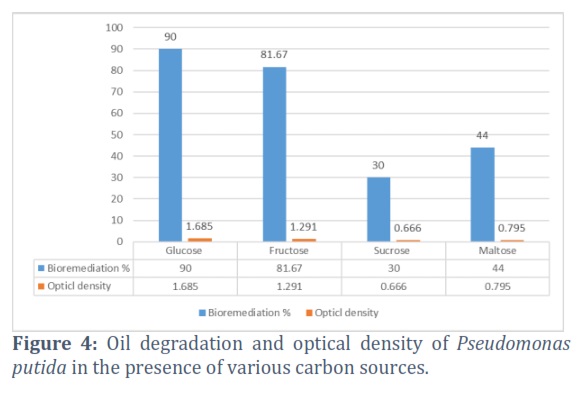

  The percentage of hydrocarbon bioremediation of P. putida in BH medium modified by adding different carbon sources (2%) sucrose, fructose, glucose and maltose was different. These results showed that, glucose and fructose were  favorable for the bacterial isolate P. putida whereas, the percentages of hydrocarbon bioremediation in the presence of glucose and fructose were 90% and 81.67% respectively compared to other carbon sources (Figure 4), while the highest values of optical density in the presence of glucose and fructose were 1.685 and 1.291 respectively (Figure 4).

Figures & Tables

Discussion

In this research, soil samples were taken from Wasit oil depot /Iraq considered significant source for locally prevalent bacteria that can mineralize crude oil. The purpose of this study was the isolation of most active bacterial isolate  in the biodegradation process. Microorganism growth is evidence that the biodegradation process is occurring and microorganisms can survive by utilizing the nutritional supplies in their living media and their population  will rise [15]. The biodegradation of pollutants in biodiesel/diesel blends by P. putida    resulted in the production of biomass, carbon dioxide (CO₂), and water (H₂O) [16]. Optimal condition for bioremediation of hydrocarbon pollutants assessed in this study and the increase in optical density which denotes higher cell proliferation is evidence that the proportion of hydrocarbon elimination increased during the study period of (9 days). There are reports available that say that the highest hydrocarbon degradation was ranged from 74.04% to 90.09% in 10 to 14 days of incubation time in 1% oil by the bacterial isolate Bacillus megaterium [17].  It is also reported that in the incubation Period (10–14 days), the strain Microbacterium esteraromaticum destroyed around 60% of the PAHs provided as the only carbon source [18]. The highest value of hydrocarbon degradation by P. putida  at 35 ͦ C is reported in this study. [19]  discovered that the best temperatures for growing Escherichia coli and Serratia marcescens were 37°C, in order to utilize these bacteria in the bioremediation of hydrocarbon-polluted soils. pH is one of the factors that has the greatest influence on the growth of microbial cells in  polluted environment. This study showed that the optimal pH was 7. These results are compatible with the results of [20] observed that bacterial isolates of K. rosea and B. amyloliquefaciens recorded the percentages of hydrocarbon degradation as 93.8% and 68.9% respectively at optimum conditions pH =7. It is recorded that the maximum degradation proportion of petroleum hydrocarbon was 65.4%. and maximum OD600 of the genus Enterobacter at the pH= 7.0 [21]. The result of this study showed that monosaccharides were more effective in petroleum hydrocarbon hydrolysis. Petroleum hydrocarbon degradation in the presence of glucose and fructose as an extra carbon source was more rapid than in the absence of glucose. The bacterial isolate Microbacterium esteraromaticum was able to degrade 98.7% of polycyclic aromatic hydrocarbon, benzo [a]pyrene and pyrene in mineral salts medium with glucose [18].

The results established that the bacterial isolate Pseudomonas putida identified from oil-polluted soil samples in Iraq was capable of consuming crude oil as its only source of carbon. The bacterial isolate can be used in petroleum hydrocarbon bioremediation process. The optimal pH for bacterial isolate Pseudomonas putida that decompose hydrocarbons was 7 and 9 days of incubation producing high levels of hydrocarbon bioremediation. The optimal temperature for bacterial isolates to decompose hydrocarbons was 35^oC. This bacterial isolate preferred glucose and fructose to increase bioremediation percentage.

Author Contributions

Fatima Kareem Shandookh

Responsible for collection of soil samples

Isolation of bacterial isolates

Measurement of variables of optical conditions

Melad Khalaf Mohammed

Ordering of results

Ahmed Darweesh Jabbar

Identification of bacterial isolates

Conflict of Interest

The author declare that there is no conflict of interest regarding the publication of this paper.

References

1. Abo-State MAM, Riad BY, Bakr AA, Aziz MA. Biodegradation of    naphthalene by Bordetella avium isolated from petroleum refinery wastewater in Egypt and its pathway. Journal of radiation research and applied sciences, (2018);11(1):1-9.‏
2. Chandra S, Sharma R, Singh K, Sharma A. Application of bioremediation technology in the environment contaminated with petroleum hydrocarbon. Annals of    microbiology, (2013);63(2):417-431.
3. Rahman KSM, Rahman T, Lakshmanaperumalsamy P, Banat IM. Occurrence of crude oil degrading bacteria in gasoline and diesel station soils. Journal of Basic Microbiology: An International Journal on Biochemistry, Physiology, Genetics, Morphology and Ecology of Microorganisms, (2002);42(4):284-291.
4. Bidoia ED, Montagnolli RN, Lopes PRM. Microbial biodegradation potential of hydrocarbons evaluated by colorimetric technique: a case study. Appl Microbiol Biotechnol,(2010);7:1277-1288.‏
5. Díaz E. Bacterial degradation of aromatic pollutants: a paradigm of metabolic versatility. International microbiology, (2004);7:173-180.
6. Bastiaens L, Springael D, Wattiau P, Harms H, deWachter R, Verachtert H, Diels L. Isolation of adherent polycyclic aromatic hydrocarbon (PAH)-degrading bacteria using PAH-sorbing carriers. Applied and Environmental Microbiology, (2000); 66(5):1834-1843.‏
7. Udgire M, Shah N, Jadhav M. Enrichment, isolation and identification of hydrocarbon degrading bacteria. International Journal of Current Microbiology and Applied Sciences, (2015);4(6):708-713.‏
8. Abdulla KJ, Ali SA, Gatea IH, Hameed NA, Maied SK. Bio-degradation of crude oil using local bacterial isolates. In IOP Conference Series: Earth and Environmental Science, (2019); 388(1): 012081.
9. Datta P, Tiwari P, Pandey LM. Isolation and characterization of biosurfactant producing and oil degrading Bacillus subtilis MG495086 from formation water of Assam oil reservoir and its suitability for enhanced oil recovery. Bioresource technology, (2018);270:439-448.‏
10. Agarry SE, Solomon BO. Kinetics of batch microbial degradation of phenols by indigenous Pseudomonas fluorescence. International Journal of Environmental Science & Technology, (2008);5:223-232.‏
11. Panjiar N, Sachan SG, Sachan A. Screening of bioemulsifier-producing micro-organisms isolated from oil-contaminated sites. Annals of Microbiology, (2015); 65(2):753-764.‏
12. Latha R, Kalaivani R. Bacterial degradation of crude oil by gravimetric analysis. Advances in Applied Science Research, (2012);3(5):2789-2795.‏
13. Naveen kumar S, Manoharan N, Ganesan S, Manivannan S, Velsamy GJIjoes. Isolation, screening and in vitro mutational assessment of indigenous soil bacteria for enhanced capability in petroleum degradation. International journal of Environmental science, (2010);1:498-513.
14. Zavareh MSH, Ebrahimipour G, Moghadam MS, Fakhari J, Abdoli T. Bioremediation of crude oil using bacterium from the coastal sediments of Kish Island, Iran. Iranian journal of public health, (2016);45(5):670-679.
15. Yuan W, Chen J, Shu Y, Liu S, Wu L, Ji J, Shu X. (2017). Correlation of DAPK1 methylation and the risk of gastrointestinal cancer: A systematic review and meta-analysis. PloS one, (2017);12(9):e0184959.‏
16. Mariano AP, Tomasella RC, De Oliveira LM, Contiero J, De Angelis DDF. Biodegradability of diesel and biodiesel blends. African Journal of Biotechnology, (2008);7(9):1323-1328.
17. Kuri ML, Roy S. Biodegradation of petroleum oil by a novel Bacillus megaterium strain isolated from contaminated soil of Neemrana, Alwar, Rajasthan, India. International Journal of Biotechnology and Bioengineering Research, (2019);10:17-27.‏
18. Logeshwaran P, Subashchandrabose SR, Krishnan K, Sivaram AK, Annamalai P, Naidu R, Megharaj M. Polycyclic aromatic hydrocarbons biodegradation by fenamiphos degrading Microbacterium esteraromaticum MM1. Environmental Technology & Innovation, (2022);27:102465.‏
19. AL-Mayaly IK. Using of Some Bacterial Species to Treat Polluted Soils with Hydrocarbons. Ibn AL-Haitham Journal for Pure and Applied Science, (2017);23(3): 5-14.‏
20. Nafal DH, Abdulhay HS. Bioremediation of petroleum polluted soils using consortium bacteria. Iraqi Journal of Science, (2020);61(5):961-969.‏
21. Zhang P, You Z, Chen T, Zhao L, Zhu J, Shi W, Sun Y. Study on the Breeding and Characterization of High-Efficiency Oil-Degrading Bacteria by Mutagenesis. Water, (2022);14(16):2544.‏
