Protein preparation

The 3D structure of NEK7 (PDB ID: 2WQN) was retrieved from the Protein Data Bank. Heteroatoms, comprising four ligands, and water molecules were eliminated. Further investigation showed that the protein contained incomplete portions, especially missing residues. To overcome these limitations, the structure was modeled with the SWISS-MODEL tool. This computational technique aided in the restoration of the missing sections, culminating in a full depiction of the NEK7 protein. The optimized model was then stored in the .pdb file for future analysis.

Preparation of the Ginger Compound Library

The LOTUS database resulted in 383 unique bioactive chemicals from Z. officinale. The compounds were collected in .sdf format. The PyRx program was used to prepare compounds for docking simulation. The preparation process included energy minimization with the mmff94 force field and converting the compounds to the .pdbqt format.

Virtual screening

The prepared Z. officinale compound library was screened against the NEK7 protein with PyRx 0.8 software. The X, Y, and Z coordinates were defined as -11.348222, -32.512407, and -46.605296, respectively. The coordinates were determined based on the ligand's natural position within the protein crystal structure. The screening yielded a large number of results, which were carefully analyzed to determine the binding affinities of the compounds. The docking score of each compound was compared to that of Dabrafenib, a well-known control compound, to identify potential drug candidates that interact positively with the NEK7 protein.

Physiochemical, molecular descriptor, and NP-likeness properties

Using the LOTUS database (https://lotus.naturalproducts.net/), the physicochemical characteristics, molecular descriptors, and natural product-likeness ratings of the top six hits were evaluated. The LOTUS database, renowned for its vast natural product data collection, simplified the process of analyzing the molecular makeup of each compound [19].

Results

This study used a thorough computational screening process to identify the natural substances that inhibit the NEK7 protein. The NEK7 protein is regarded as a key target for drug development in cancer treatments. The bioactive compounds found in Z. officinale were chosen to determine their ability to bind to the active site of the NEK7 protein. The original 3D conformation of NEK7, obtained from the PDB was found to be missing certain residues, resulting in an incomplete structure. To address this issue and ensure a thorough examination, the structure was rebuilt using the SWISS-MODEL online tool. SWISS-MODEL used the original 2WQN structure as a foundational template to accurately model the NEK7 protein's missing segments, preparing it for further computational screening.

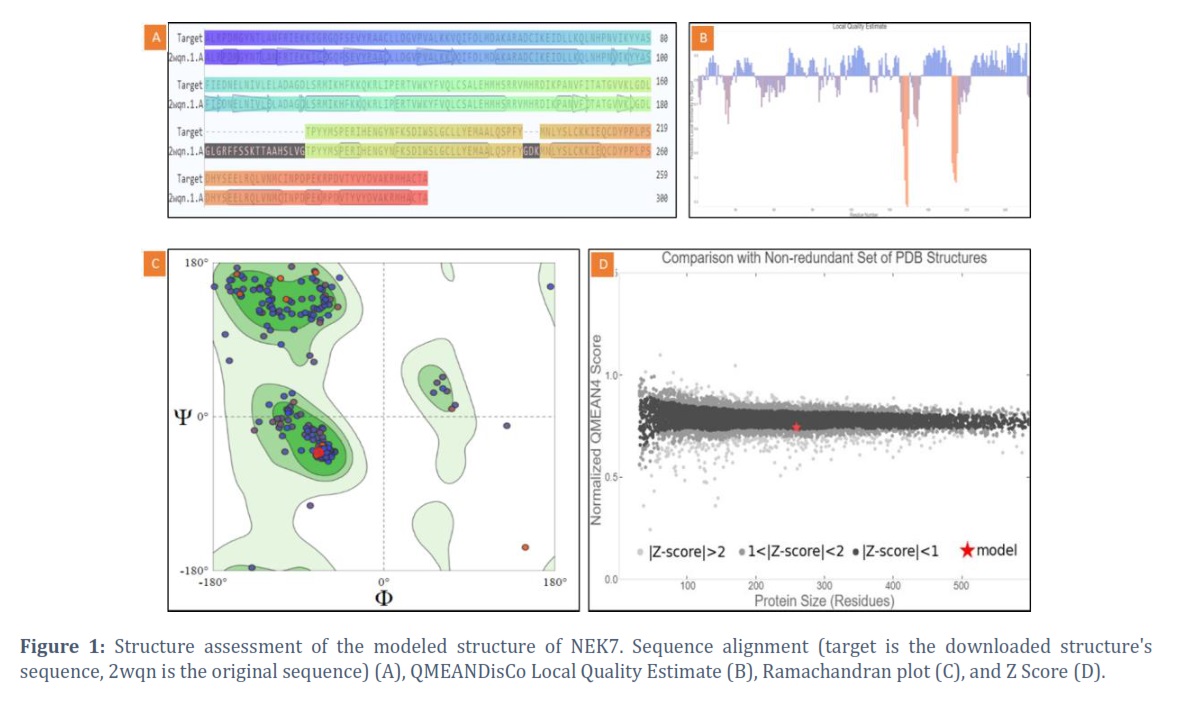

The resulting model's integrity and accuracy were thoroughly evaluated with SWISS-MODEL's integrated quality estimation tools. These validation measures revealed a high-quality model, demonstrating its structural dependability and applicability for further research (Figure 1).

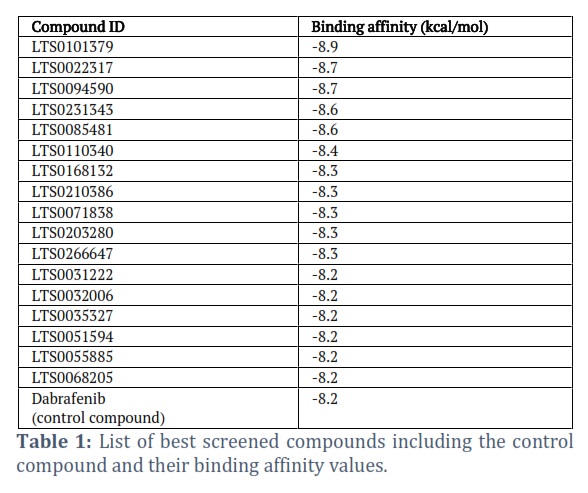

Virtual screening was performed on the 3D structure of NEK7 employing 383 optimized Z. officinale compounds, with Dabrafenib acting as a positive control. Of the 383 compounds that were looked at, Table 1 indicates that 17 of them had binding energies that were either higher than or comparable to the control.

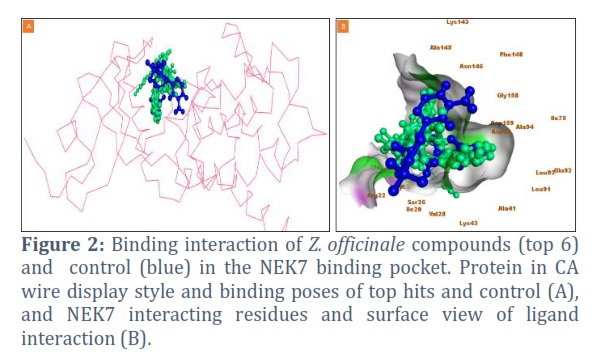

Upon executing a visual assessment of the binding poses of the top 17 compounds using both 3D and 2D interaction evaluation, it was observed that 6 compounds exhibited better binding and interaction with the majority of NEK7's active site residues. Figure 2 illustrates the regions in which the control and top six compounds bind. These compounds lie in the same binding pocket and have most of the active site residues in common.

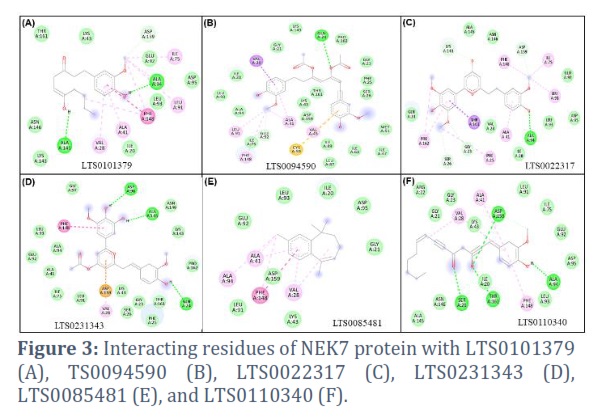

The 6 top hits namely LTS0101379, LTS0022317, TS0094590, LTS0231343, LTS0085481, and LTS0110340 were further extensively analyzed by their interaction with active site residues of NEK7. LTS0101379 was found to interact with Thr161, Lys43, Asp159, Glu92, Ile75, Ala94, Asp95, Leu93, Leu91, Phe148, Ala41, Ile20, Val28, Ala145, Lys143, and Asn146 residues of NEK7 (Figure 3A). LTS0094590 interacted with Val28, Gly21, Lys143, Gln24, Pro162, Gly23, Phe25, Ser26, Met51, Ile47, Ile63, Leu87, Ile89, Cys59, Val45, Thr161, Cys43, Asp159, Ala41, Glu92, Ile75, Phe148, Leu91, Ala94, Leu93, and Leu93 residues of NEK7 (Figure 3B). LTS0022317 was found to interact with Pro162, Gln24, Lys143, Ala145, Asn146, Phe148, Asp159, Ile75, Glu92, Leu91, Asp95, Leu93, Ala94, Ile20, Ala41, Val28, Phe25, Thr161, Gly23, and Ser26 residues of NEK7 (Figure 3C). LTS0231343 interacted with Asp98, Ala145, Asn146, Lys143, Pro162, Gln24, Thr161, Phe25, Gly23, Ser26, Lys43, Val28, Asp159, Leu91, Ile75, Ala41, Ala94, Glu92, Leu93, Phe148, and Gly97 residues of NEK7 (Figure 3D). LTS0085481 interacted with Glu92, Leu93, Ile20, Asp95, Gly21, Val28, Lys43, Asp159, Phe148, Leu91, Ala41, and Ala94 residues of NEK7 (Figure 3E). Further, LTS0110340 was found to interact with Arg22, Gly21, Gly23, Val28, Ala41, Lys43, Asp159, Leu91, Ile75, Glu92, Asp95, Ala94, Leu93, Phe148, Thr161, Ile20, Ser26, Asn146, and Ala145 residues of NEK7 (Figure 3F).

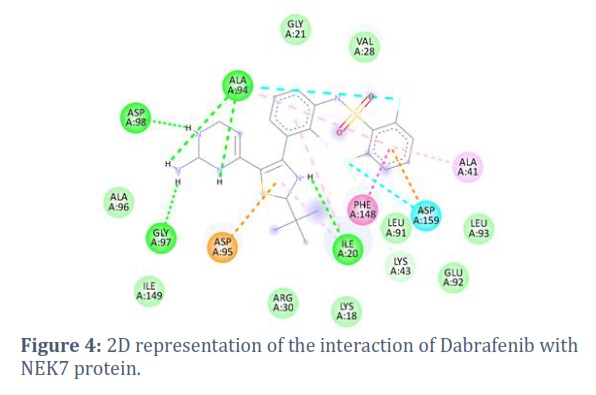

Furthermore, the control Dabrafenib was found to interact with Asp98, Ala94, Gly21, Val28, Ala41, Leu93, Asp159, Glu92, Leu91, Lys43, Phe148, Ile20, Lys18, Arg30, Asp95, Gly97, Ile149, and Ala96 residues of NEK7 (Figure 4).

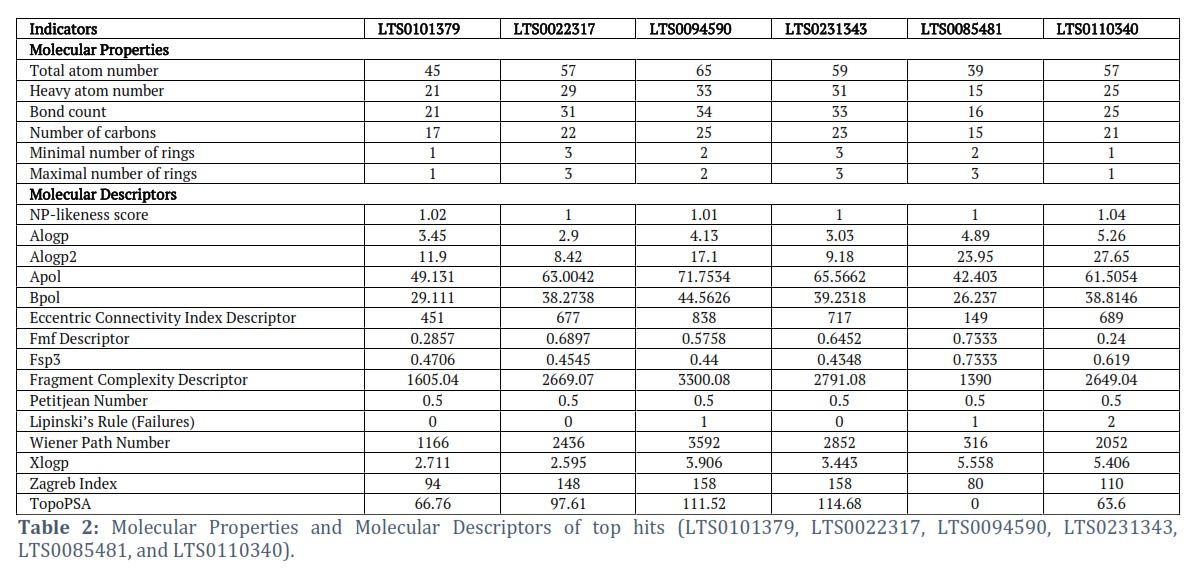

The molecular properties and descriptors of the top hits LTS0101379, LTS0022317, LTS0094590, LTS0231343, LTS0085481, and LTS0110340 were found to be favorable as shown in Table 2. The natural product-likeness assessment for each compound provided scores between -5 and +5, where -5 denoted the least probable resemblance and +5 signified the most probable resemblance to natural products. Every compound demonstrated score exceeding +1, which signifies a significant predilection for attributes resembling those of natural products. Positive scoring suggests that the substances in consideration might exhibit resemblances to established natural products, which bode well for subsequent research endeavors in the field of drug discovery. In addition, a comprehensive analysis utilizing Lipinski's Rule of Five revealed an intricate profile of these hits, assessing the chemical structure of the drug to forecast its oral bioavailability. The oral bioavailability of LTS0094590, LTS0085481, and LTS0110340 may be compromised due to occasional violations of the rule. On the other hand, LTS0101379, LTS0022317, and LTS0231343 demonstrated a high level of suitability for further drug development considerations. They all met the criteria and did not show any violations.

Figures & Tables

Discussion

A wide range of regulatory proteins contribute to cell division fidelity, with kinases emerging as particularly important players. Protein kinases serve a variety of activities throughout the cell cycle, including checkpoint control and involvement in cancer etiology [20-22]. Protein kinase inhibition has proven to be an effective therapeutic method in cancer treatment [23,24]. NEK7, an essential component in spindle assembly and mitotic division, holds pivotal significance. Dysregulated expression of NEK7 is linked to the advancement of many cancers and related malignancies [25], making it a promising target for the development of highly selective and powerful anti-cancer therapies. In this study, Z. officinale bioactive compounds were tested against the NEK7 protein. Among them, six compounds (LTS0101379, LTS0022317, TS0094590, LTS0231343, LTS0085481, and LTS0110340) displayed better binding affinity and interaction with NEK7's active site residues.

To gain a better understanding of the interaction between the hit compounds and NEK7 residues, an analysis of the interaction between the control compound (Dabrafenib) and the NEK7 protein was performed. This analysis showed that several NEK7 residues, including Asp98, Ala94, Gly21, Val28, Ala41, Leu93, Asp159, Glu92, Leu91, Kys43, Phe148, Ile20, Lys18, Arg30, Asp95, Gly97, Ile149, and Ala96, played critical roles in binding with Dabrafenib. Interestingly, the top 5 compounds (LTS0101379, LTS0022317, TS0094590, LTS0231343, LTS0085481, and LTS0110340) were observed to interact with most of these NEK7 residues.

H-bonding has an important role in stabilizing the ligand-protein complex [26-28]. Accordingly, the hit compounds exhibited various H-bonding with NEK7 residues. The Ala94 and Ala145 residues of NEK7 formed H-bonds with LTS0101379, while the Gln24 residue formed H-bonds with LTS0094590. LTS0231343 also formed hydrogen bonds with the Asp98, Ala145, and Gln24 residues of NEK7, while LTS0022317 formed hydrogen bonds with the Ala94 residue of NEK7. Furthermore, LTS0110340 showed hydrogen bonding with Asp159, Ala94, Thr161, and Ser 26 residues of NEK7.

A pronounced negative binding energy indicates a strong interaction within the ligand-protein complex, which corresponds to a lower ligand dissociation rate [27,29,30]. Notably, the hit compounds (LTS0101379, LTS0022317, TS0094590, LTS0231343, LTS0085481, and LTS0110340) had higher negative binding energies than Dabrafenib. This observation indicates that these compounds have strong interactions with the NEK7 protein.

Field research conducted in several Asian and African regions has revealed the historic use of ginger in cancer treatment. The scientific community has extensively researched the biological properties of ginger extracts and extracted compounds such as gingerols, shogaols, zingiberene, and zingerone, using both in vitro and vivo approaches. Ginger and its active components have shown inhibitory actions against key enzymes related to  cancer progression [31]. The identified ginger compounds in this study had a strong binding affinity for the NEK7 protein, indicating their potential utility in cancer management.

Any alteration in the normal expression or genetic sequence of NEK7 can result in the development of cancerous malignancies. This study screened the Z. officinale compounds against the NEK7. LTS0101379, LTS0022317, TS0094590, LTS0231343, LTS0085481, and LTS0110340 were found to interact strongly with NEK7. In addition, these compounds have several amino acid residues interactions in common with the Dabrafenib. These compounds can be used as NEK7 inhibitors in cancer management. However, further experimental validation is required.

Conflict of Interest

The author declare that there is no conflict of interest regarding the publication of this paper.

References

1. Sung H, Ferlay J, Siegel RL, Laversanne M, Soerjomataram I, et al. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA: A Cancer Journal for Clinicians, (2021); 71(3): 209-249.
2. Sun Z, Gong W, Zhang Y, Jia Z. Physiological and Pathological Roles of Mammalian NEK7. Frontiers in Physiology, (2020); 11: 606996.
3. Debela DT, Muzazu SG, Heraro KD, Ndalama MT, Mesele BW, et al. New approaches and procedures for cancer treatment: Current perspectives. SAGE Open Medicine, (2021); 9: 20503121211034366.
4. O'Connell MJ, Krien MJ, Hunter T. Never say never. The NIMA-related protein kinases in mitotic control. Trends in Cell Biology, (2003); 13(5): 221-228.
5. Kimura M, Okano Y. Identification and assignment of the human NIMA-related protein kinase 7 gene (NEK7) to human chromosome 1q31.3. Cytogenetics and cell genetics, (2001); 94(1-2): 33-38.
6. Saloura V, Cho HS, Kiyotani K, Alachkar H, Zuo Z, et al. WHSC1 promotes oncogenesis through regulation of NIMA-related kinase-7 in squamous cell carcinoma of the head and neck. Molecular Cancer Research, (2015); 13(2): 293-304.
7. Eisa NH, Jilani Y, Kainth K, Redd P, Lu S, et al. The co-chaperone UNC45A is essential for the expression of mitotic kinase NEK7 and tumorigenesis. Journal of Biological Chemistry, (2019); 294(14): 5246-5260.
8. Yan Z, Qu J, Li Z, Yi J, Su Y, et al. NEK7 Promotes Pancreatic Cancer Progression And Its Expression Is Correlated With Poor Prognosis. Frontiers in Oncology, (2021); 11: 705797.
9. Zhou L, Wang Z, Xu X, Wan Y, Qu K, et al. Nek7 is overexpressed in hepatocellular carcinoma and promotes hepatocellular carcinoma cell proliferation in vitro and in vivo. Oncotarget, (2016); 7(14): 18620-18630.
10. Capra M, Nuciforo PG, Confalonieri S, Quarto M, Bianchi M, et al. Frequent alterations in the expression of serine/threonine kinases in human cancers. Cancer Research, (2006); 66(16): 8147-8154.
11. Zhang M, Viennois E, Prasad M, Zhang Y, Wang L, et al. Edible ginger-derived nanoparticles: A novel therapeutic approach for the prevention and treatment of inflammatory bowel disease and colitis-associated cancer. Biomaterials, (2016); 101: 321-340.
12. Kumar NV, Murthy PS, Manjunatha JR, Bettadaiah BK. Synthesis and quorum sensing inhibitory activity of key phenolic compounds of ginger and their derivatives. Food Chemistry, (2014); 159: 451-457.
13. Citronberg J, Bostick R, Ahearn T, Turgeon DK, Ruffin MT, et al. Effects of ginger supplementation on cell-cycle biomarkers in the normal-appearing colonic mucosa of patients at increased risk for colorectal cancer: results from a pilot, randomized, and controlled trial. Cancer Prevention Research , (2013); 6(4): 271-281.
14. Ho SC, Chang KS, Lin CC. Anti-neuroinflammatory capacity of fresh ginger is attributed mainly to 10-gingerol. Food Chemistry, (2013); 141(3): 3183-3191.
15. Suk S, Kwon GT, Lee E, Jang WJ, Yang H, et al. Gingerenone A, a polyphenol present in ginger, suppresses obesity and adipose tissue inflammation in high-fat diet-fed mice. Molecular Nutrition & Food Research, (2017); 61(10): 1700139.
16. Wei CK, Tsai YH, Korinek M, Hung PH, El-Shazly M, et al. 6-Paradol and 6-Shogaol, the Pungent Compounds of Ginger, Promote Glucose Utilization in Adipocytes and Myotubes, and 6-Paradol Reduces Blood Glucose in High-Fat Diet-Fed Mice. International Journal of Molecular Sciences, (2017); 18(1): 168.
17. Walstab J, Kruger D, Stark T, Hofmann T, Demir IE, et al. Ginger and its pungent constituents non-competitively inhibit activation of human recombinant and native 5-HT3 receptors of enteric neurons. Neurogastroenterology & Motility, (2013); 25(5): 439-e302.
18. Townsend EA, Siviski ME, Zhang Y, Xu C, Hoonjan B, et al. Effects of ginger and its constituents on airway smooth muscle relaxation and calcium regulation. American Journal of Respiratory Cell and Molecular Biology, (2013); 48(2): 157-163.
19. Rutz A, Sorokina M, Galgonek J, Mietchen D, Willighagen E, et al. The LOTUS initiative for open knowledge management in natural products research. Elife, (2022); 11: e70780.
20. Fry AM, O'Regan L, Sabir SR, Bayliss R. Cell cycle regulation by the NEK family of protein kinases. Journal of Cell Science, (2012); 125(19): 4423-4433.
21. Oakley BR, Morris NR. A mutation in Aspergillus nidulans that blocks the transition from interphase to prophase. The Journal of Cell Biology, (1983); 96(4): 1155-1158.
22. Morris NR. Mitotic mutants of Aspergillus nidulans. Genetics Research, (1975); 26(3): 237-254.
23. Gross S, Rahal R, Stransky N, Lengauer C, Hoeflich KP. Targeting cancer with kinase inhibitors. The Journal of Clinical Investigation, (2015); 125(5): 1780-1789.
24. Lapenna S, Giordano A. Cell cycle kinases as therapeutic targets for cancer. Nature Reviews Drug Discovery, (2009); 8(7): 547-566.
25. Moraes EC, Meirelles GV, Honorato RV, De Souza TD, De Souza EE, et al. Kinase inhibitor profile for human nek1, nek6, and nek7 and analysis of the structural basis for inhibitor specificity. Molecules, (2015); 20(1): 1176-1191.
26. Shaikh S, Aaqil H, Rizvi SM, Shakil S, Abuzenadah AM, et al. Comparative inhibition study of compounds identified in the methanolic extract of Apamarga Kshara against Trichomonas vaginalis carbamate kinase (TvCK): an enzoinformatics approach. Interdisciplinary Sciences: Computational Life Sciences, (2016); 8: 357-365.
27. Rafeeq MM, Helmi N, Sain ZM, Iqbal J, Alzahrani A, et al. Target-based virtual screening and molecular dynamics approach to identify potential antileishmanial agents through targeting UvrD-like helicase ATP-binding domain. Advancements in Life Sciences, (2024); 11(1): 237-245.
28. Sait KH, Alam Q, Anfinan N, Al-Ghamdi O, Malik A, et al. Structure-based virtual screening and molecular docking for the identification of potential novel EGFRkinase inhibitors against ovarian cancer. Bioinformation, (2019); 15(4): 287.
29. Sayed Murad HA, Rafeeq MM, Alqahtani SM, Rajab BS, Alghamdi S, et al. Molecular docking analysis of AGTR1 antagonists. Bioinformation, (2023); 19(3): 284-289.
30. Kamal MA, Baeissa HM, Hakeem IJ, Alazragi RS, Hazzazi MS, et al. Insights from the molecular docking analysis of EGFR antagonists. Bioinformation, (2023); 19(3): 260-265.
31. Mahomoodally MF, Aumeeruddy MZ, Rengasamy KR, Roshan S, Hammad S, et al. Ginger and its active compounds in cancer therapy: From folk uses to nano-therapeutic applications. In Seminars in Cancer Biology, (2021); 69: 140-149.
